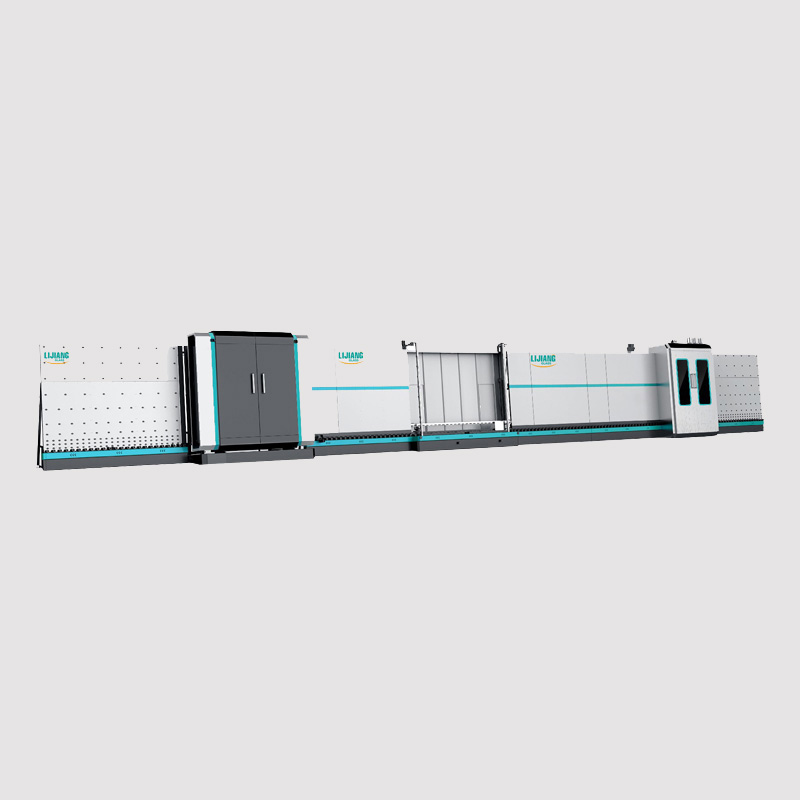

Insulating Air-floating Glass Processing Line

1. Air floating back plate , to avoid the wheel scraching the glass and leaving wheel marks

2. Two pieces of IGU could be pressed and filled gas in once time, high work efficiency

3. Gas filling in pressing,automatic filling the glass in different areas according to the size of glass

4. Germany Siemens PLC control system, touch screen interface

5. Automatic identification of coated and Low-E glass

6. 3 pairs of soft brushes can wash online and offline Low-E glass


Price
$9.99
  Contact Now
Product Details

Vertical insulating glass production  line is used for making insulating glass for homes, home home windows and doorways, moreover for supply, fridge, freezer and so forth. this ig line includes glass washing and glass urgent gadget, it is able to make double / triple glazing glass, for facets step glass. the elective feature of filling argon fuel is available, the air content is extra than ninety% at least.


PERFORMANCE

  • Air floating again plate , to keep away from the wheel scraching the glass and leaving wheel marks

  • Two portions of igu could be pressed and crammed gasoline in as soon as time, high work efficiency

  • Gasoline filling in urgent,automatic filling the glass in different areas consistent with the dimensions of glass

  • Germany siemens percent manipulate device, contact display screen interface

  • Automatic identification of covered and occasional-e glass

  • 3 pairs of tender brushes can wash online and offline low-e glass

  • The bathing machine adopts ss fabric and water-resistant device

  • Water tank with automatic temperature control and water washing machine

  • Air heating device

  • Air fan automated start and stop setting

  • Noise discount device

  • On-line show of washing velocity

  • Sensible intermittent work, saving energy

  • Adjustable urgent board to preserve the plate urgent surface straight

  • Automated external rotary positioning device of glass

  • Connection mode of aviation plug

  • Erp machine is optional


PARAMETER


Unit

LJBZ2025GF

LJBZ2535GF

LJBZ2535DGF

Power supply


380V 50Hz 3P

Total power

KW

41

44.5

51.5

Washing speed

m/min

2~10

Maximum working speed

m/min

45

Minimum glass size

mm

450*280

Maximum glass size

mm

2000*2500  2000x3000 (Pressed by twice)

2500*3200

2500*3500(Pressed by twice)

2500x4500(Pressed by twice, add suckers)

Flat glass thickness

mm

3~15(3-30option)

Washing brushes

Pieces

6

Maximum thickness of insulating glass

mm

60

Total gas consumption

L/min

1200

Conveyer roll height

mm

520

Dimension

L*W*H(mm)

19500*3500*3200

23500*3500*3700

27000*3500*3700
