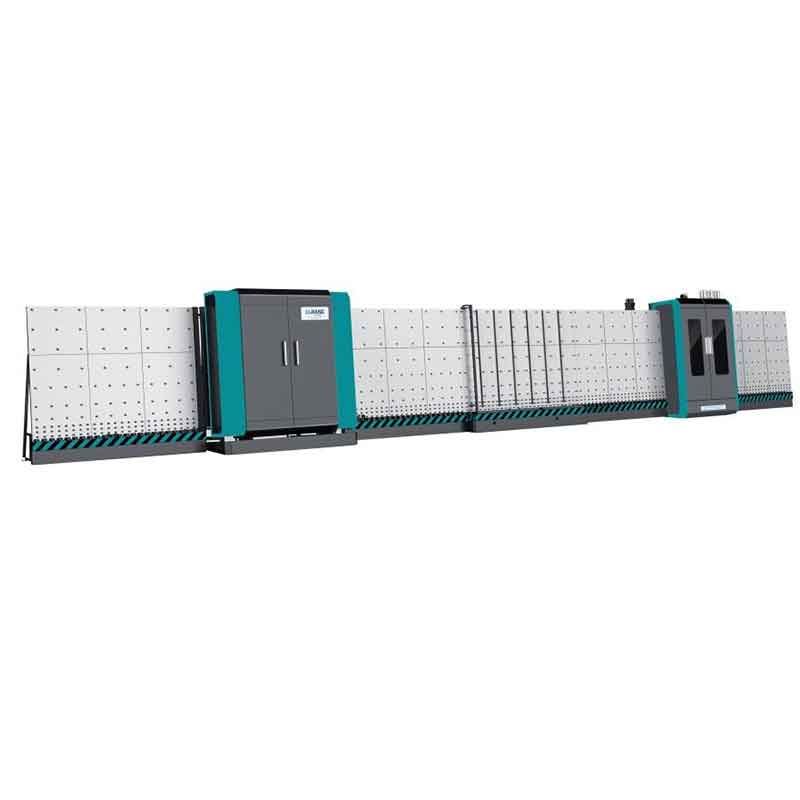

Vertical Insulated Glass Produce Line LJBZ2535

1. transfer section;

2. washing and drying machine; 03 discharge section;

3. inspection and installation section; 05 transfer section;

4. pressing section;

5. discharge section.


Price
$9.00
  Contact Now
Product Details

• 01 transfer section

01 transfer section is inclined vertical structure. The transmission roller is wear- resistant, acid and alkali polyamine grease roller, adopting the stepless frequency conversion speed regulation and the glass can run smoothly at the appropriate speed. The foot switch can according to the work situation start and stop transmission at any time. The low-e detection and alarm system can accurately detect whether the coating surface of the coated glass is properly placed.If not, the buzzer alarm is reported and the transmission is stopped.

transfer section.jpg

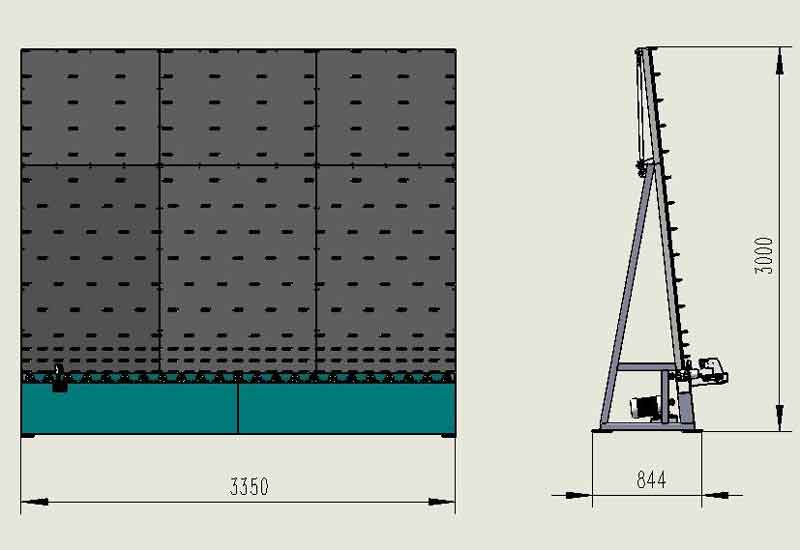

Dimensions

3350×844×3000(mm)

Power

0.4kW

Min.glass size

450×280(mm)

Max.glass size

2500×3500(mm)

Working speed

2~10m/min

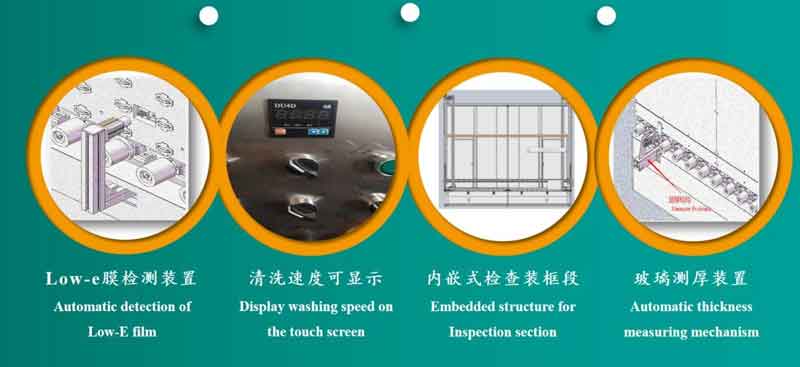

Coating detection mechanism, automatic detection of offline Low-e glass

This sensor is installed before washing machine. It can automatically recognize Low- e glass surface fast and precisely, preventing the glass from dropping Low-e surface.


• 02 washing and drying machine

washing and drying machine.jpg

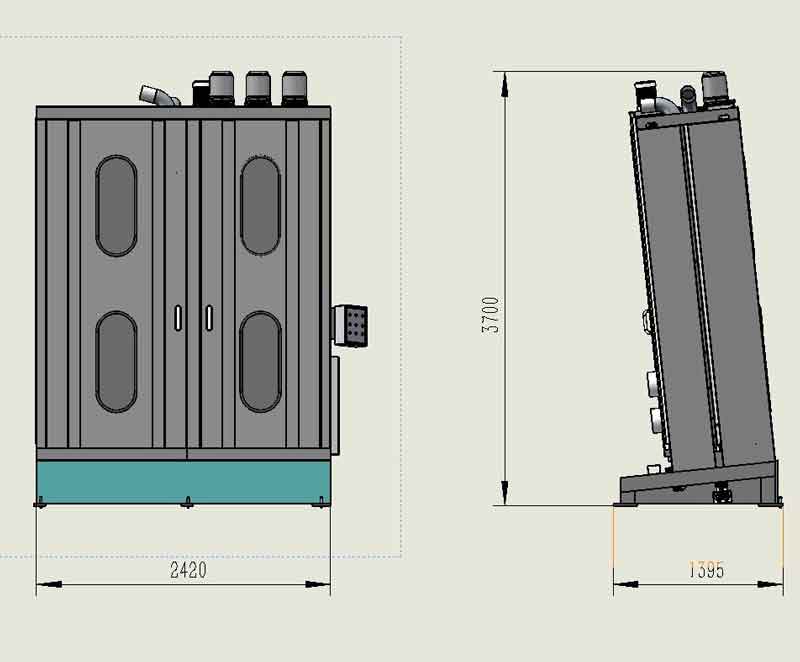

Dimensions

2420×1375×3600(mm)

Power

29kW

Min.glass size

450×280(mm)

Max.glass size

2500×3500(mm)

Working speed

2~10m/min

02 washing&drying section is inclined vertical structure. The control box is arranged on the outside of the washing section.

The cleaning section and water tank are made of 304 stainless steel and corrosion- resistant materials. The roller is an acid and alkali rubber roller, which is automatically adjusted according to the thickness of the glass.

Adopts stepless frequency conversion speed regulation, the glass can run smoothly at the right speed.

The cleaning section has three pairs of soft brushes with high pressure water sprayer to clean, can clean low-e glass;

The drying section has a pair of slanting blades with a partition board, which automatically adjusts the distance between the two blades according to the thickness of the glass, ensuring the air drying effect.

Fan is 15KW variable frequency fan.When blowing dry small glass, the fan is in low- frequency operation, the wind knife only use the lower half of the wind knife, not only reduces the energy consumption greatly, but also does not affect the wind drying effect.

The waterway system consists of two separate water circulatory systems: the first level cleaning of the waterway system, secondary rinsing waterway system, the glass first washed by the first grade clean water, and then washed by the rinsing water.

washing and drying machine.jpg


Washing section

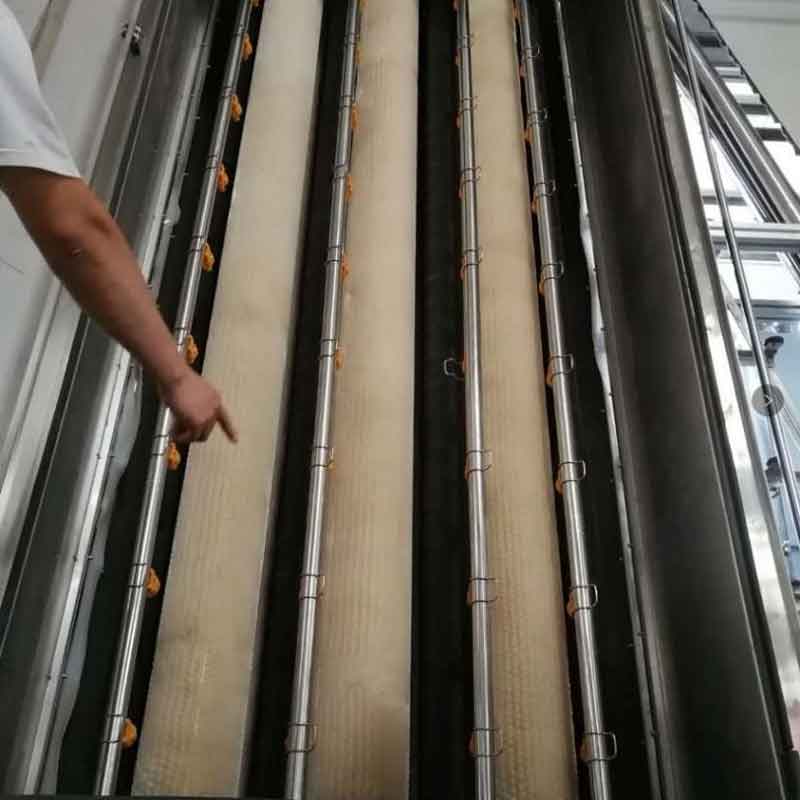

• Using 6 pieces of soft brushes, can wash low-e glass clearly

Washing section.jpg

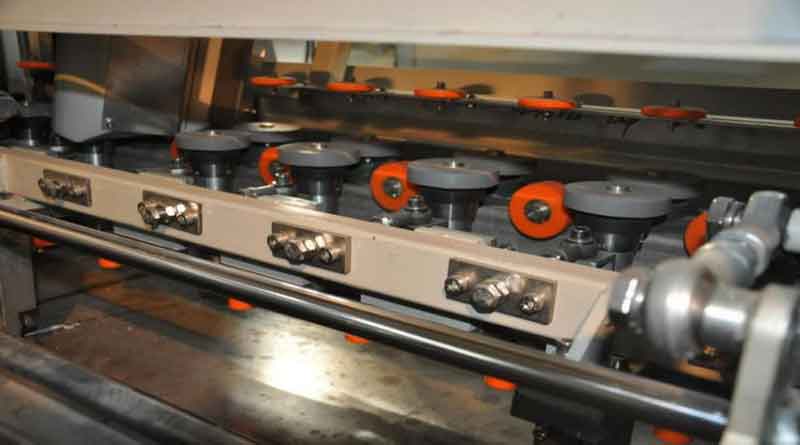

• It is made of 304 stainless steel, the brush bearing is made of Harbin stainless steel, which is famous in China;

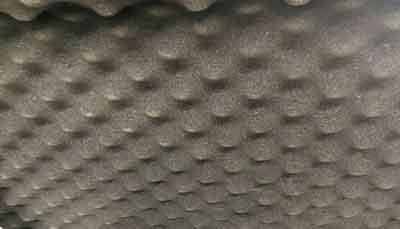

• Using Europe's advanced anti-noise system to create a good working environment

for employees, the noise can be controlled below 90 decibels by using nylon gear and sponges.

1641279984873347.jpg Washing section.jpg


Drying section

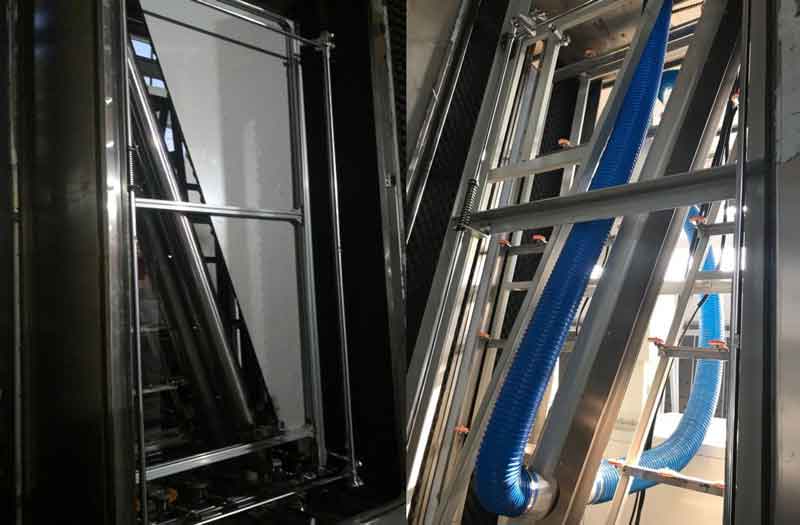

New air knife uses aluminum profile (Duckbill Air Knife), the size of the air outlet is adjusted by the aluminum profile duck beak. This can reduce the number of adjusting screws, ensure that each screw is not loose, and avoid the resonance of the air knife.

Drying section.jpg

• The air knife can automatically adjust the width of the air knife according to the glass thickness

The special structure inside the washing machine can automatically recognize glass thickness. Allowing different thicknesses of glass to be transferred quickly, increasing production speed. According to the test, it takes only 22s to produce a 1m*1m insulating glass.


1). There is a universal joint device, when the glass thickness was changed, the wind knife will move forward and backward to adjust the distance so that the relative distance between the wind knife and the glass is constant, so as to avoid damage to  the glass due to the changes of the glass thickness.

Drying section.jpg

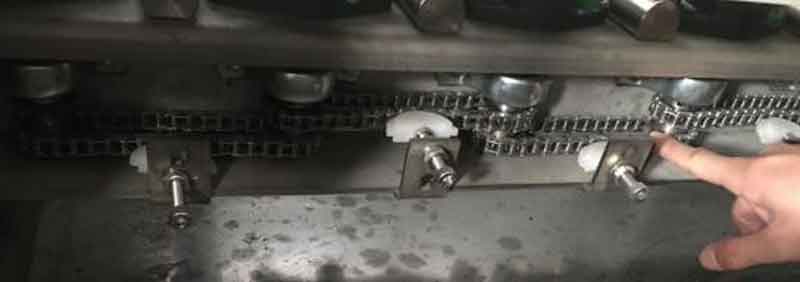

2). There are chain gears on both sides of the bottom of the glass to actively transfer the glass which can keep a fast speed, not only the large size, small size glass can also be passed quickly.

Drying section.jpg

• The operation box with washing speed display, can accurately display washing speed (8-10m)

• Water tank automatic temperature control, water replenishing system

As different countries have different water quality, in order to ensure that the glass is washes clearly enough, adopting air heating system, to use soft water to wash glass. What’s more, using water filter system to make water recycling, save water and keep the water clear.


• 03 discharge section

discharge section.jpg

Dimensions

3350×844×3000(mm)

Power

0.75kW

Min.glass size

450×280(mm)

Max.glass size

2500×3500(mm)

Working speed(double speed)

2~45m/min


03 discharging section is inclined vertical structure. The transmission roller is wear- resistant, acid and alkali polyamine grease roller, adopting the stepless frequency conversion speed regulation and the glass can run smoothly at the appropriate speed.


• 04 inspection and installation section

inspection and installation section.jpg

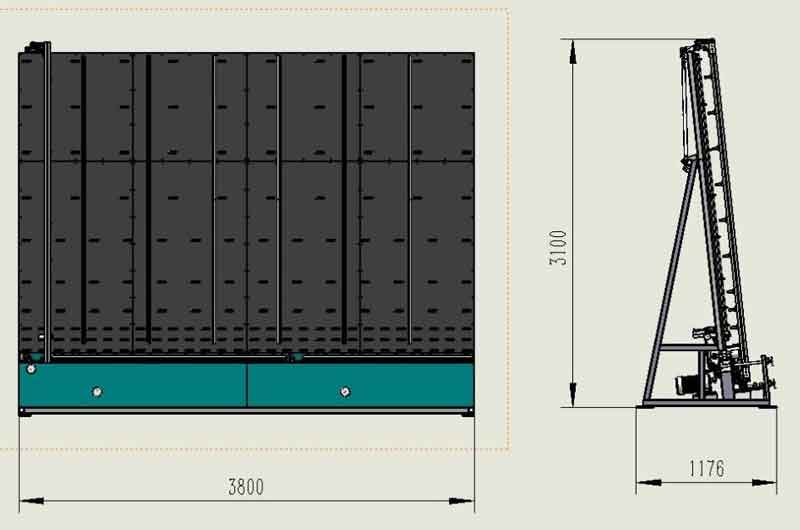

Dimensions

3800×1176×3100(mm)

Power

1.1kW

Min.glass size

450×280(mm)

Max.glass size

2500×3500(mm)

Working speed(double speed)

2~10m/min 2~45m/min

04 inspection and frame section is inclined vertical structure. The transmission roller is wear-resistant, acid and alkali polyamine grease roller, adopting the stepless frequency conversion speed regulation and the glass can run smoothly at the appropriate speed.The positioning device is divided into two parts. When making the small size glass, the first half aluminum frame is not positioned and only the second half of the aluminum frame is positioned under the aluminum frame. The digital display on the handwheel shaft can accurately adjust the glass side positioning and the positioning of aluminum frame to adjust the depth of the two components polysulfide.High quality inspection lamp can clearly inspect the cleaning quality of glass.

The new structure of this section is changed to an inline beam lifting structure (double beam). It is easy to inspect and wipe the glass.


• 05 transfer section

transfer section.jpg

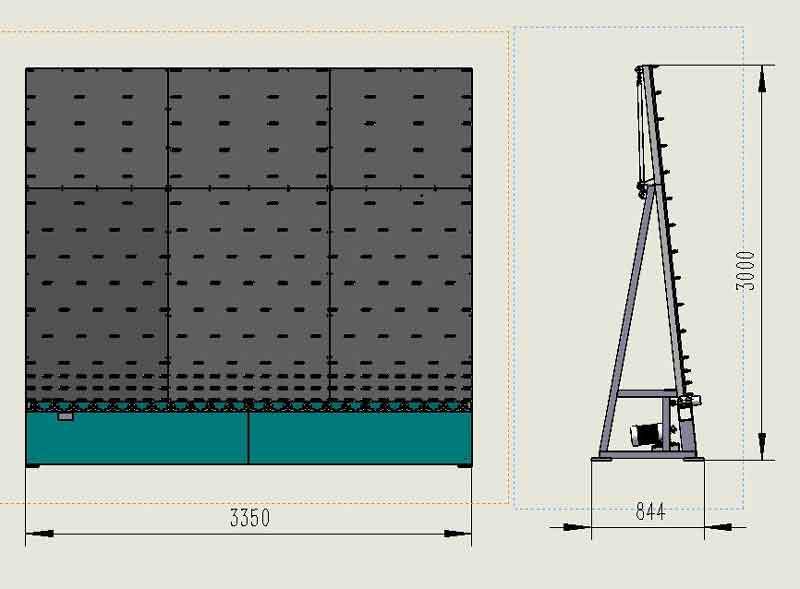

Dimensions

3350×844×3000(mm)

Power

0.75kW

Min.glass size

450×280(mm)

Max.glass size

2500×3500(mm)

Working speed

2~45m/min


• 06 pressing section

pressing section.jpg


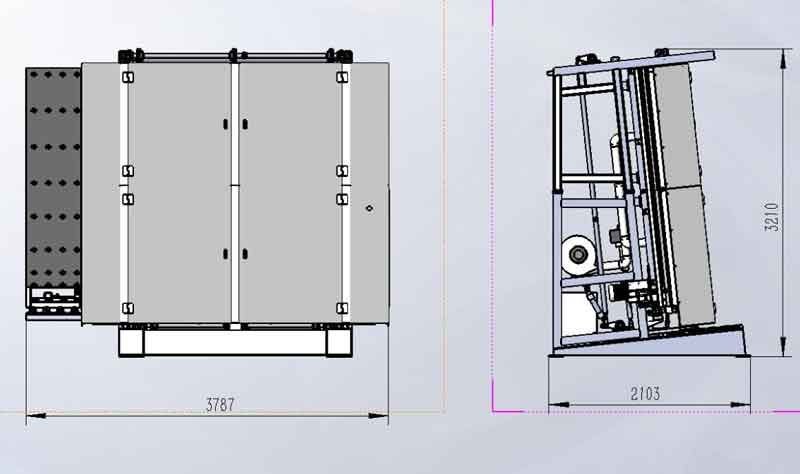

Dimensions

3700×2185×3230(mm)

Power

6.6kW

Min.glass size

450×280(mm)

Max.glass size

2500×3500(mm)

Working speed

2~45m/min

06 pressing section is used for the pressing and flat of insulating glass and the flat pressure.Both of two actions are completed in this part, which greatly reduces the structure length of the whole insulating glass production line.

The glass is supported and transmitted by the polyurethane roller. The transmission roller is driven by the motor through the frequency conversion speed, which is driven by the chain wheel. The fixed rear pressure plate is equipped with air cushion device to assist the glass conveying. The air cushion gas source is filtered by high precision filter. The wind control system is adjusted according to the working condition of the glass. The movable front presser is equipped with a suction device that can hold the glass firmly. Glass slice and flat pressure by the hydraulic pressure drive control activities before the synchronous transmission shaft of the compressor, ensure that two pieces of glass can safely and balanced portfolio and according to set the time and pressure roller, hydraulic system can automatically according to the size of the glass to provide four kind of pressure, different specifications of the hollow glass can according to the required pressure roller, conform to the requirements of insulating glass.

Both of the parameters of left and right orientation of the glass side and glass positioning up and down direction are set according to the user's requirements. The servo system can accurately perform the setting parameters.


• Ultra-long insulating glass can be compressed twice

• Adopts conveyor belt to transfer glass

• The pressing plate can be opened for easy maintenance

• Pressing board with adjustable structure to guarantee long-lasting service life
