Vertical Insulating Glass Laminating Machine

Rapid processing mode
Perfect glue pattern
Efficient processing
Low failure rate
Perfect after-sales system

Price

$45,000.00

Contact Now

Product Details

High Efficiency LJTJ2025 Automatic Sealing Robot 2.5m Vertical Insulating Glass Laminating Machine Could be Connected

Products Description

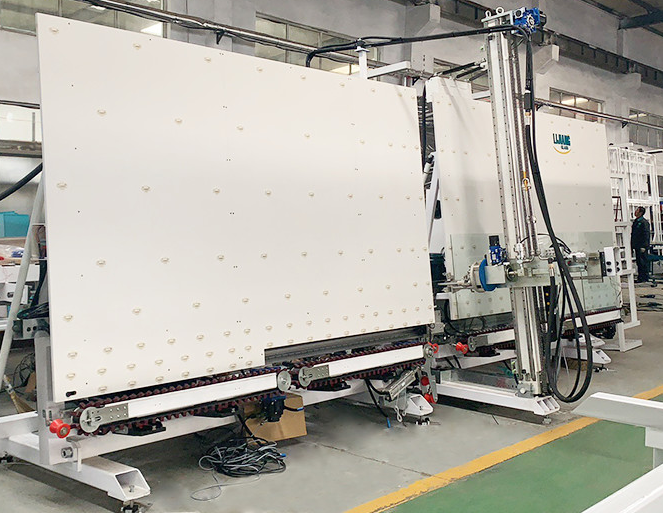

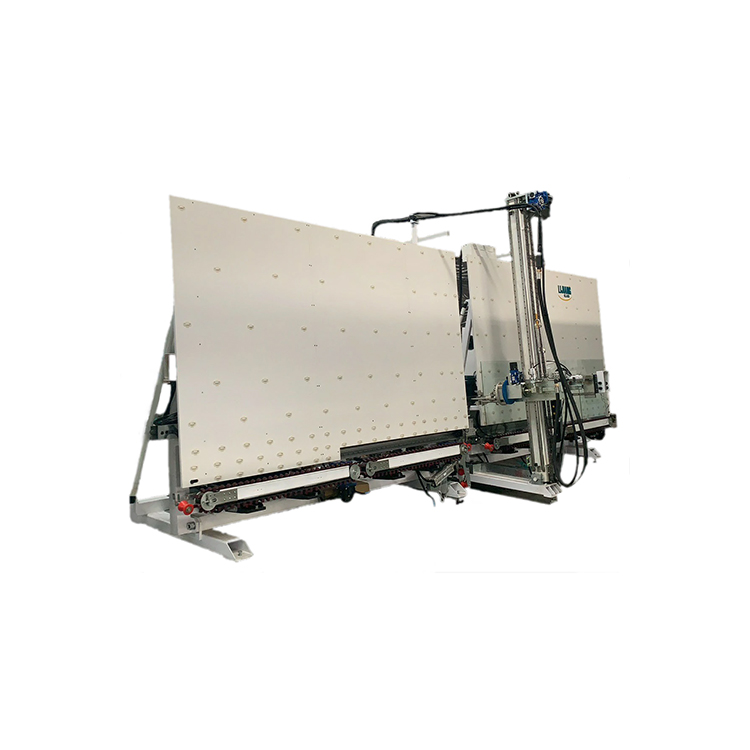

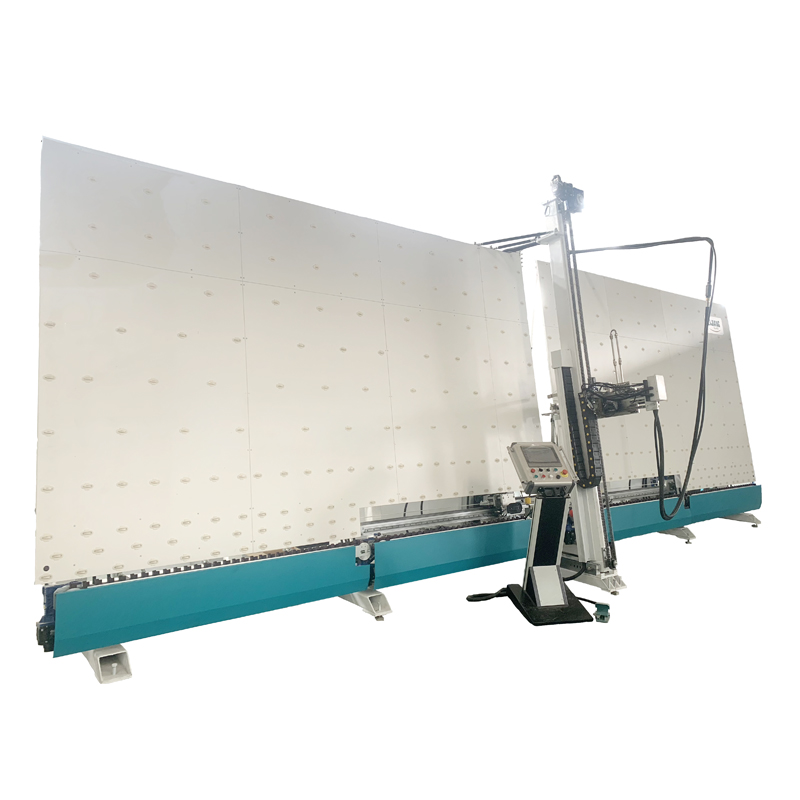

Automatic Vertical Insulating Glass Sealing Robot

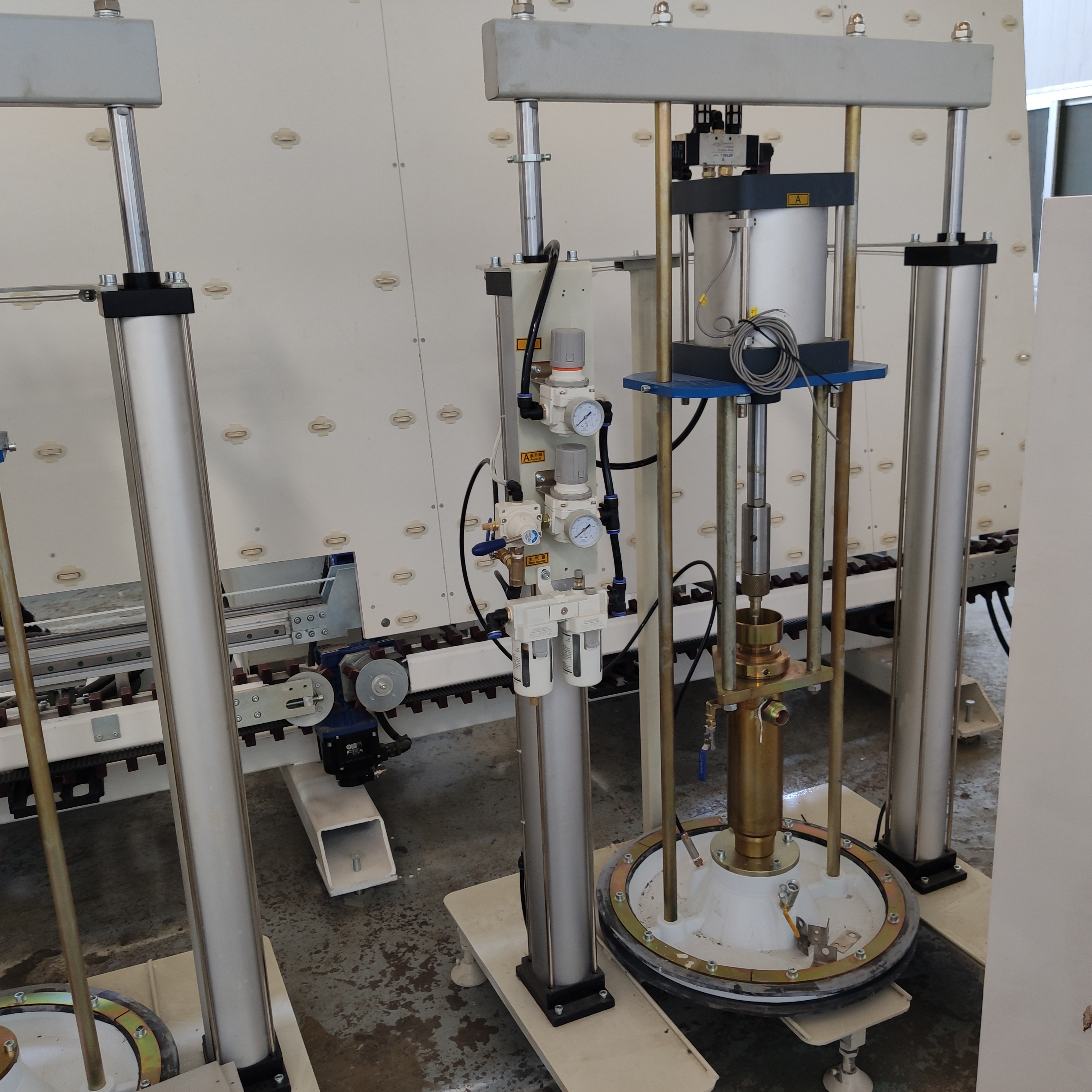

Lijiang Glass automatic insulating glass sealing robot evenly smears the mixed sealant on the outer channel of the insulating glass through the servo mechanism, which helps to improve the sealing and bonding performance of the insulating glass.

Advantages & Features

Main Technical Parameter

Item.	Spec.
Product name	Vertical Insulating Glass Sealing Robot LJTJ2540
Max.glass size	2500*4000mm
Min.glass size	400mm*300mm
Glass thickness	12-56mm
Working speed	5-40m/min
Air pressure	0.6-0.8MPa
Squeeze pressure	<350kg/m³
Overall dimension	8700mm2500mm3500mm
Weight	5000Kg

NAME	ORIGIN	BRAND

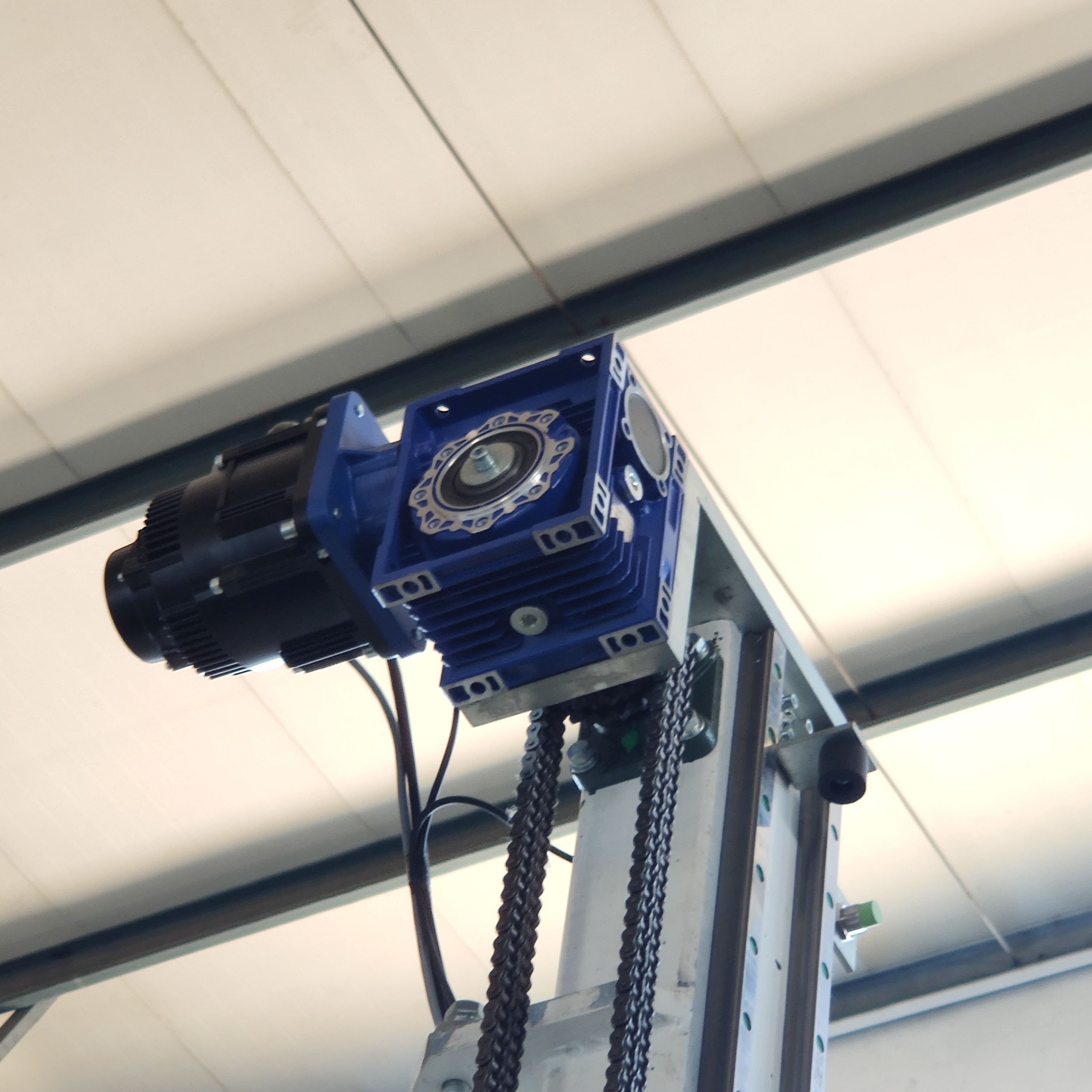

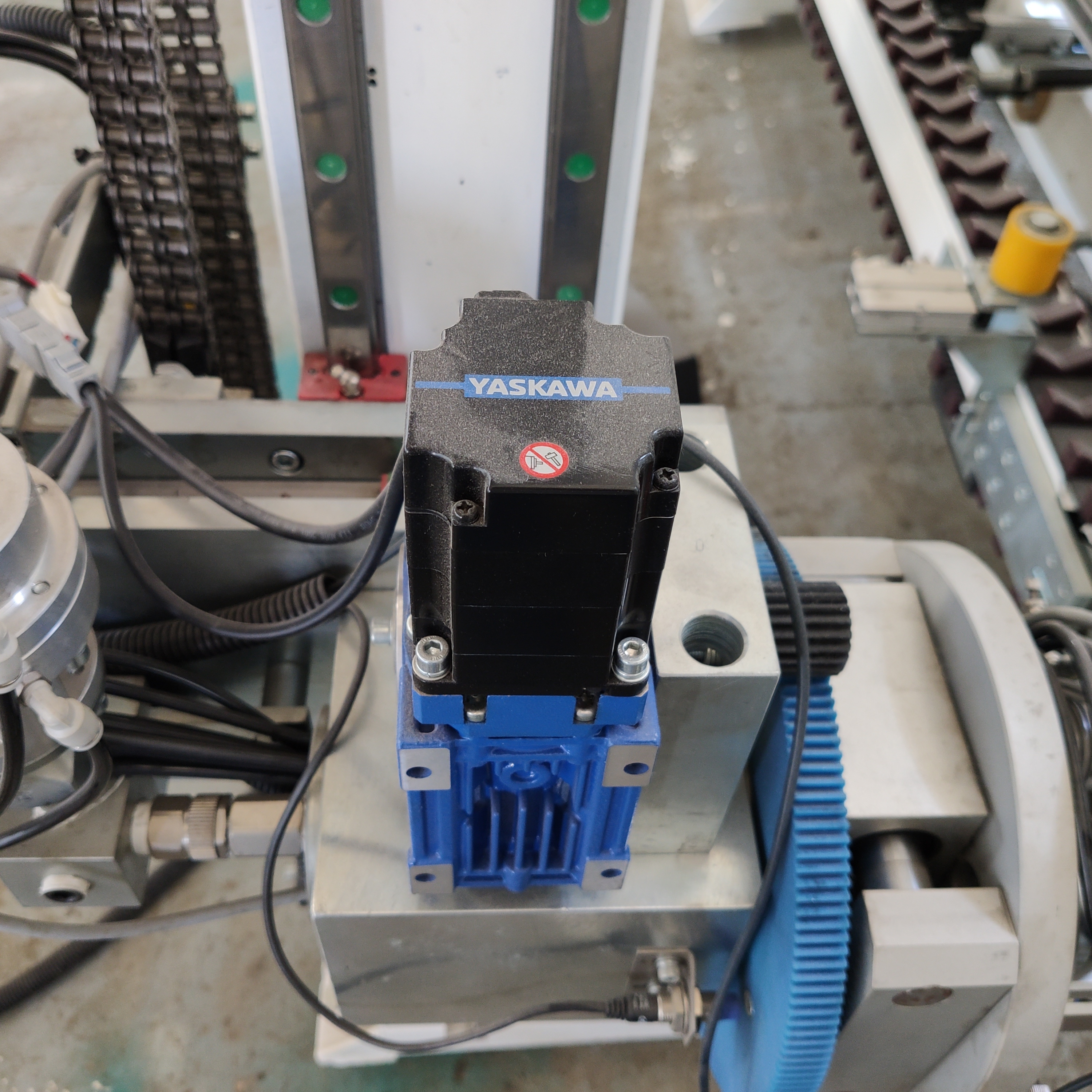

Servo motor	Taiwan	TAIDA
PLC	Taiwan	TAIDA
Pneumatic component	Taiwan	AAIRTAC
Low pressure electricity	Germany	SIEMENS
Circuit breaker	Germany	SIEMENS
Sensor switch	Korea	AUTONICS
Approach switch	Korea	AUTONICS
Limit switch	Taiwan	TEND
Connector	Germany	SIEMENS
Frequency converter	France	SCHNEIDER
Main Button	France	SCHNEIDER
Intermediate relay	Japan	OMRON
