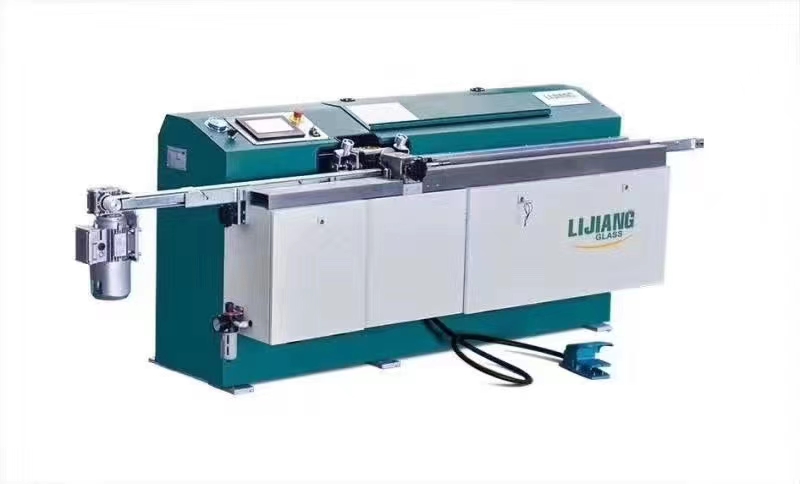

Butyl Extruder Machine with Patented Technology

1,Touch-screen operation which makes the machine simple and practical

2,Rectangle & arc frame , decorative aluminum fram can be coat

3,Auto-measure the width of spacer, auto-adjust the distance of nozzle

4,Auto-centering and auto clamping

5, ,non-stick coating, non-adhesive belt

6,The crossbeam height is easy to adjust,we can control the height of butyl

7,The coating speed is up to 47m/min,save butyl is up to 30%

8,Patented quick-opening valve make sure the both sides of nozzle open and close at the same time


Price
$12,000.00
  Contact Now
Product Details

Lijiang Butyl extruder machine is used to apply hot melt butyl to the aluminum spacers of insulating glass evenly. The use of large electrical control panel makes the operation easier. The conveyor of aluminum is controlled by frequency converter, and the speed can be adjusted from 0m/min to 47m/min. The squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable.


The machine is energy-saving. The dispensing cylinder uses rotate supporting system and this makes the refill of butyl easier. The system can prolong the life of squeezing system and set the heating time in 24 hours with electricity and air pressure.


The distance of squeezing head can be adjusted automatically according to different aluminum spacer. The machine has reached the worldwide technology with the characteristic of complete function and stable working mode.




Features

1,Touch-screen operation which makes the machine simple and practical 2,Rectangle & arc frame , decorative aluminum fram can be coat 3,Auto-measure the width of spacer, auto-adjust the distance of nozzle 4,Auto-centering and auto clamping 5, ,non-stick coating, non-adhesive belt 6,The crossbeam height is easy to adjust,we can control the height of butyl 7,The coating speed is up to 47m/min,save butyl is up to 30% 8,Patented quick-opening valve make sure the both sides of nozzle open and close at the same time


Parameters


Coating speed
5-47m/min
Aluminum spacer size
4-30mm
Supply sealant pressure
<100kg/cm2
Power
5KW
Air source
≥0.6MPa
Dimension
2600mm*680mm*1100mm
volume of butyl approx.
7.5L

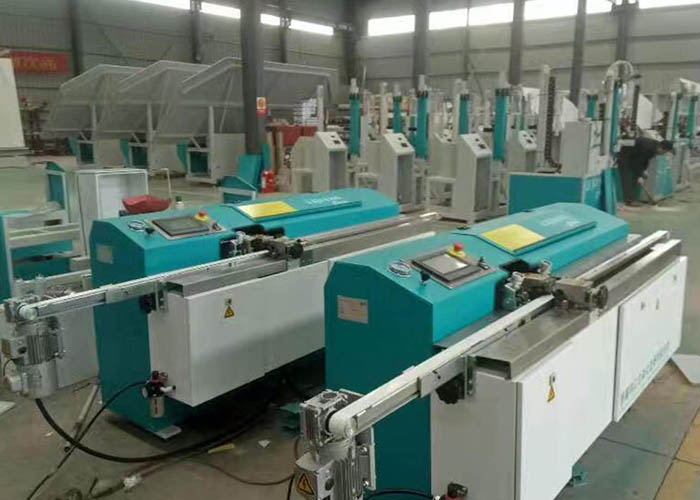

Butyl machine



Technician Team

We have our own technician team ,IG line and automatic sealing robot technician team have 6 experts which all have more than 15 glass machine working experience. Aluminum spacer bending and desiccant filling machine team we have 3 technician which have rich experience in double glass machines. butyl extruder machine and sealing pump and hot melt machine team have 4 experienced technician, all of them are worked in glass machine filed more than 12 years, Technician Team: We have our own technician team ,IG line and automatic sealing robot technician team have 6 experts which all have more than 15 glass machine working experience. Aluminum spacer bending and desiccant filling machine team we have 3 technician which have rich experience in double glass machines. Butyl extruder machine and sealing pump and hot melt machine team have 4 experienced technician, all of them are worked in glass machine filed more than 12 years
