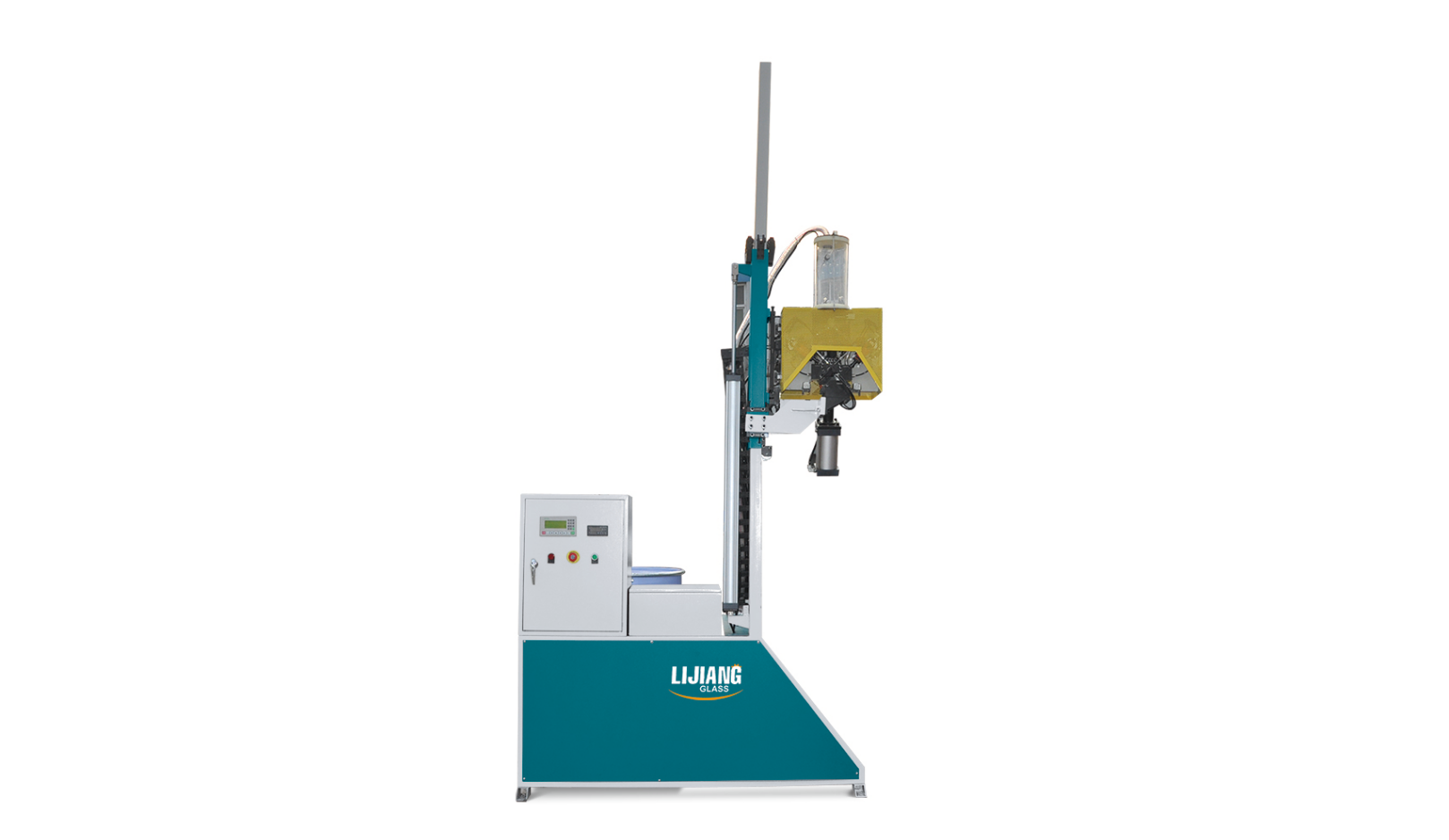

Automatic Desiccant Filling Machine

1. Desiccant Filling Machine can automatically achieve actions of drilling holes automatically in the spacer frames, filling desiccant and sealant.

2. Desiccant Filling Machine control system adopts Germany Siemens, so the speed of filling is quick and stable operation ensure the valid closure property of sealant.

3. Desiccant Filling Machine improves quality of insulating glass, it’s a necessary equipment in the process of insulating glasses.

Price
$9.99
  Contact Now
Product Details

APPLICATION

Desiccant filling machine can mechanically accumulate moves of drilling holes robotically within the spacer frames, filling desiccant and sealant. desiccant filling machine manipulate tool adopts germany siemens, so the speed of filling is short and sturdy operation make certain the valid closure property of sealant. desiccant filling machine improves first-class of insulating glass, it’s a essential gadget in the machine of insulating glasses.


1.All spare parts have ID Number for offering the

convenience in after sales service.

2. Machine height can be adjusted according to the size of spacer frame.

All spare parts.pngGlass Cutting Automatic Machine.png
3. Auto drilling, filling and sealing function4.  Protection device for machine head.
Auto drilling,.pngProtection device.png

5.Touching screen interface,simple and visible ;Filling time can be adjusted according to the size of spacer frame in the touch screen.

6.All the electrical wires have the ID number,it can  match

with specification , also it will be very easy for the further

communication in the after sales service .

screen interface of glass cutting machine.pngthe electrical wires .png

7.Desiccant automatically loading from the Materials bucket.

(When the material was used up the sensor will alarming, desiccant will automatically loading )

Glass Automatic Machine.png


Main technical parameter

Name

Brand

Name

Brand

PLC

German SIEMENS

Triplet

TAIWAN AIRTAC

Low voltage electrical apparatus

German SIEMENS

Solenoid valve

TAIWAN AIRTAC

Sensor

Korea AUTONICS

Gas driller

Taiwan BOA

Guide

Taiwan TBI

Switch power

Taiwan TEND


Filling aluminum frame’s maximum size

2000mm*2000mm

Filling aluminum frame’s minimal size

300mm*250mm

Article aluminum specifications

5.5-26.5mm

Air source

≥0.65MPa

Power supply and power consumption

AC220V 50Hz 1.8KW

Molecular sieve diameter needed

0.5-0.9mm

Dimension

1350mm*1050mm*3600mm
