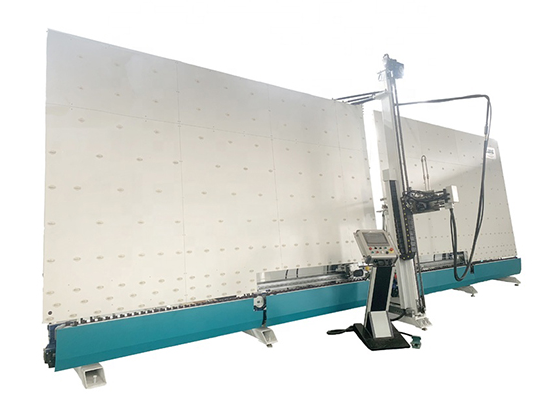

Insulating glass sealing robot silicone sealing machine

1. High automation, high efficiency, suitable for glass deep processing enterprise to use.

2. Automatic identification of glass size, glue, glue speed linear adjustment

3. Automatic angle  correction function, appearance is beautiful

Price

$40,000.00

Contact Now

Product Details

Main featureMain feature

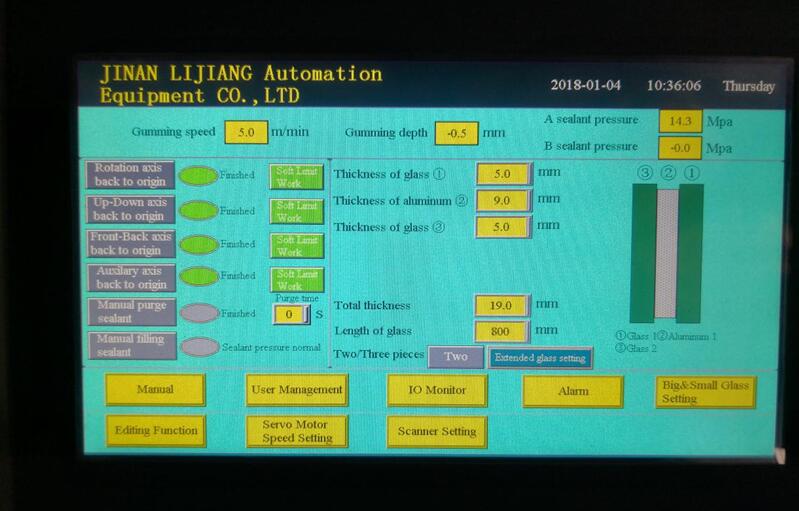

Whole machine adopt man-machine interface, the operation is more convenient and intuition with the simplified thinking design interface.
The glass edge and corner is full without air bubbles, s
mooth surface, no need to pare the corner the condition that the glass are cut levelly and without dislocation after combined.
High automation, high efficiency, suitable for glass deep processing enterprise to use.
Can use two sets of independent sealant supply system( including the mixing device), two kinds of sealants switch in one-key operation easily.（optional)
Servo control system adopts world famous brand (Japan Anchuan), the performance is stable

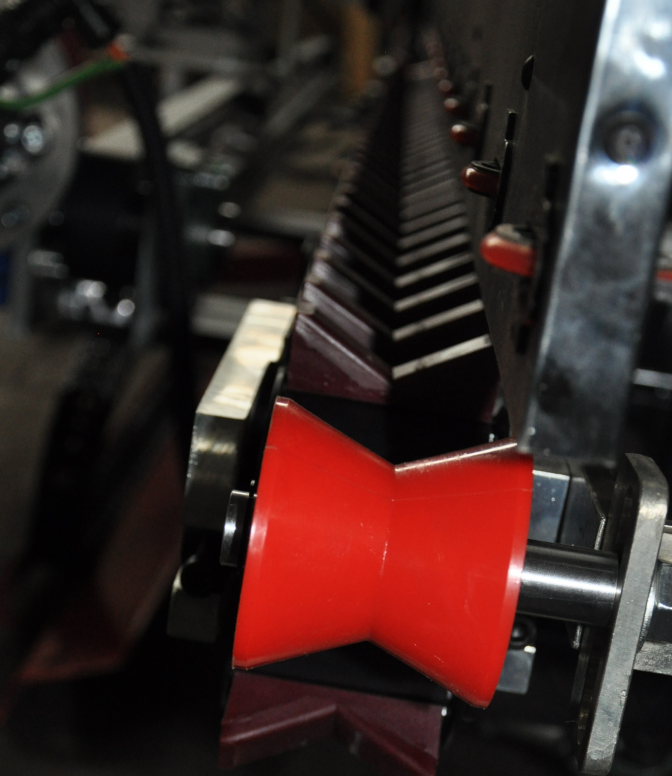

Synchronous belt transmission to make the glass being transferred smoothly with accurate positioning
The spare parts are produced with high standardization and high precision, ensure the machine can be used with long-term stability.
Support three layer glass sealant
Automatic identification of glass size, glue, glue speed linear adjustment
Automatic angle  correction function, appearance is beautiful
Alue supply system adopts Japan SMC cylinder, supply stability, the stability is good
Beautiful appearance generous, glass transfer smoothly no scratch, no pollution
Separate all equipped with manual functions, convenient adjustment
All size glass gluing fully at a time
It can glue the shapped glass , step glass .

Max.glass size	2500*4000mm
Min.glass size	300*300mm
Glass thickness	12-56mm
Working speed	5-40m/min
Air pressure	0.5-0.7MPa
Squeeze pressure	32MPa
Voltage power	380V 12kw
Overall dimension	800015002700mm
Dimension	10500mm2200mm2600mm

Servo motor	Japan Yaskawa
Servo driver	Japan Yaskawa
I/O MODEL	Japan Msystem
CPU	Japan Yaskawa
Low voltage component	France Schneider
Frequency converter	Japan Omron
Guideway	Taiwan Hiwin
Switching power supply	Taiwan MW
Optoelectronic switch	Korea Autonics
Pneumatic component	Taiwan Airtac
Pneumatic component	Japan SMC
Sensor	KOREA AUTONICS

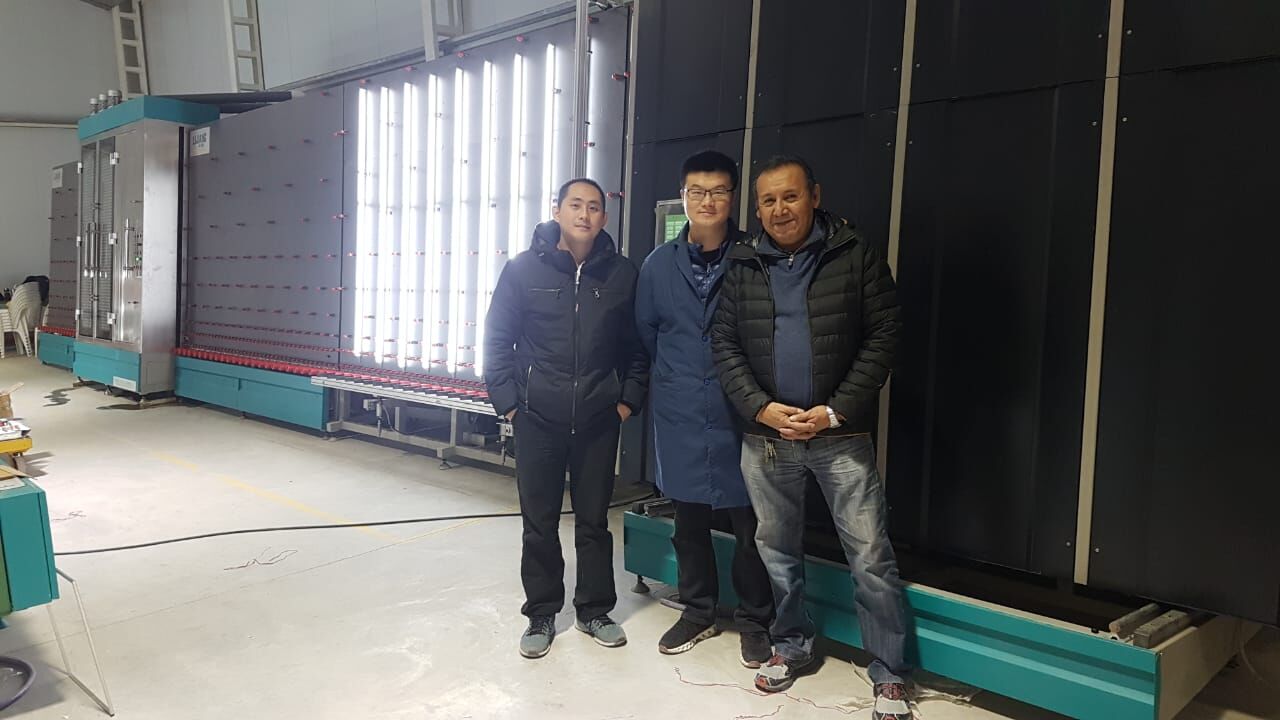

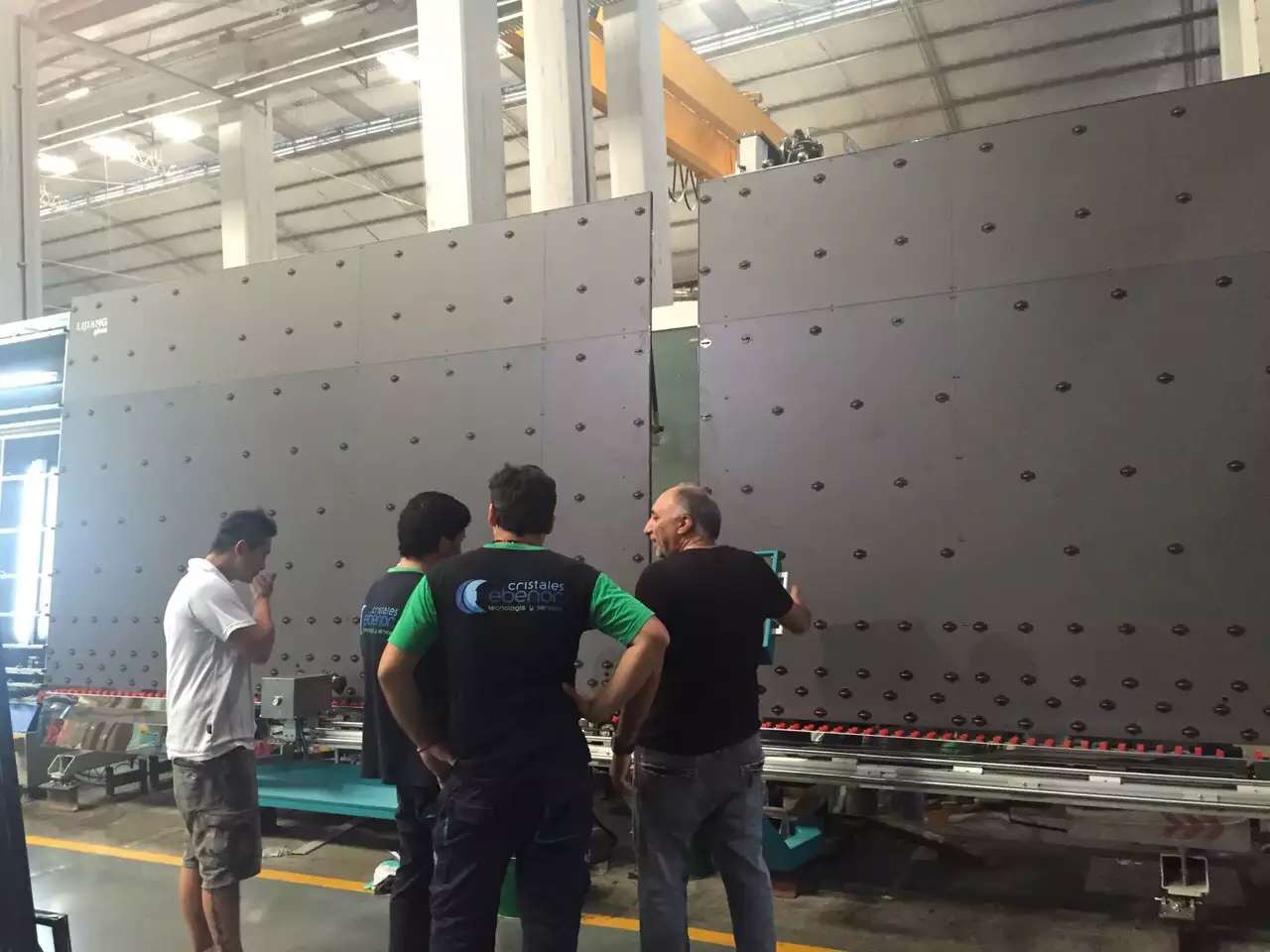

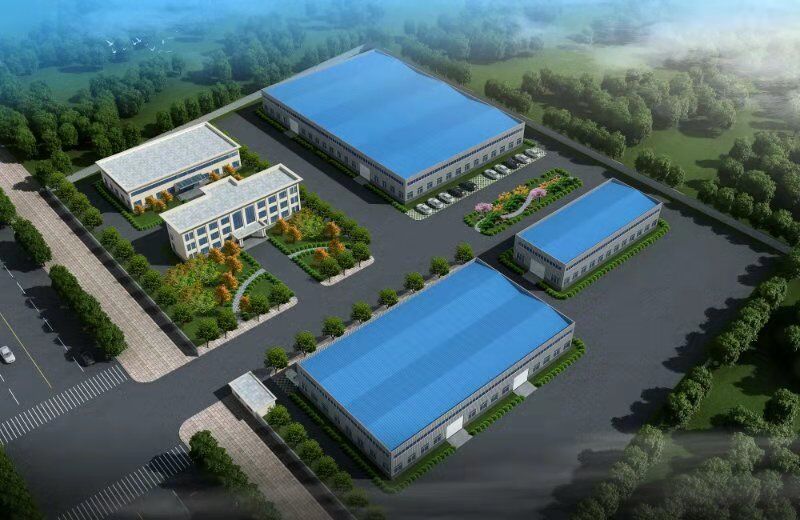

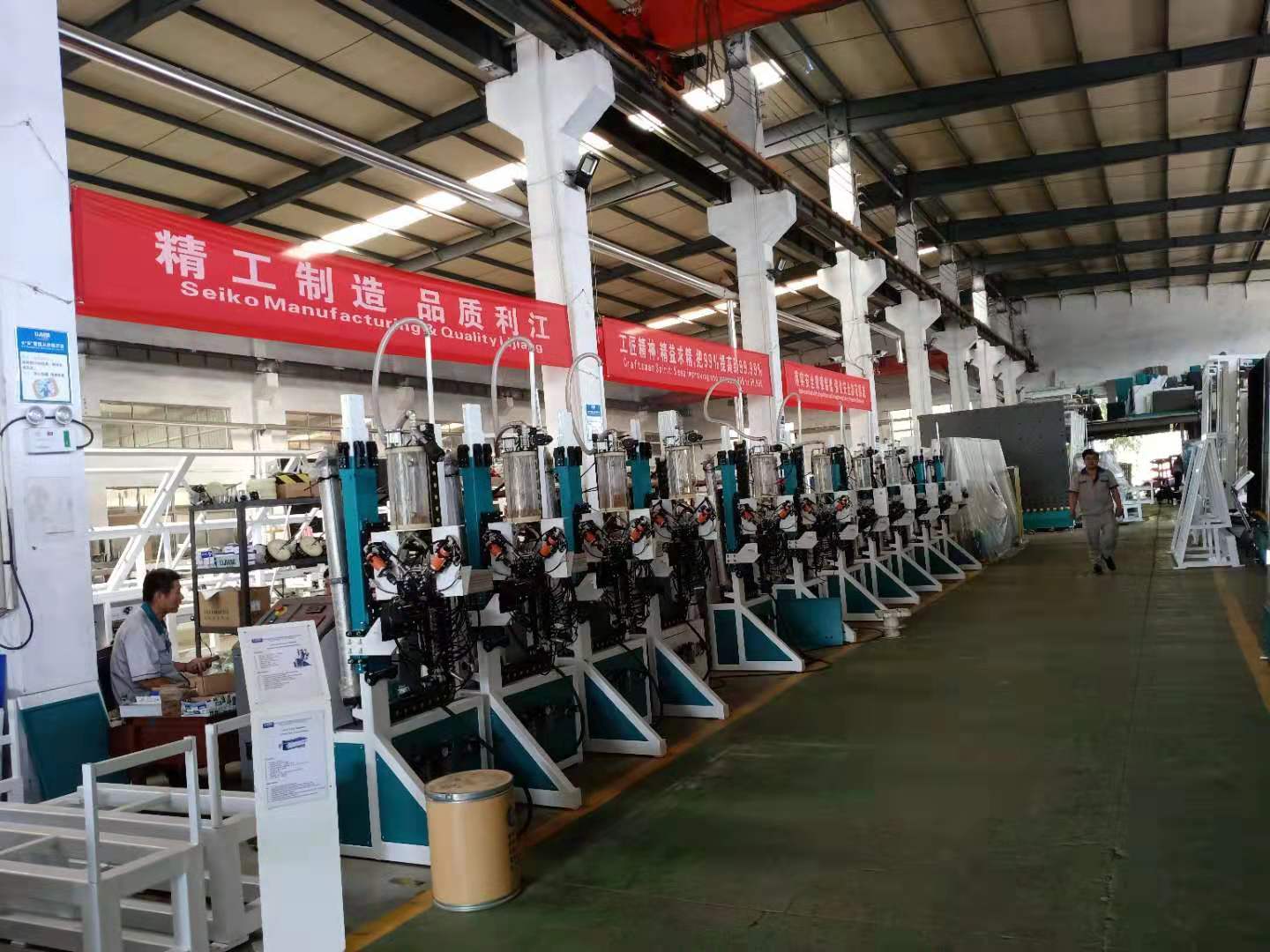

Factory display

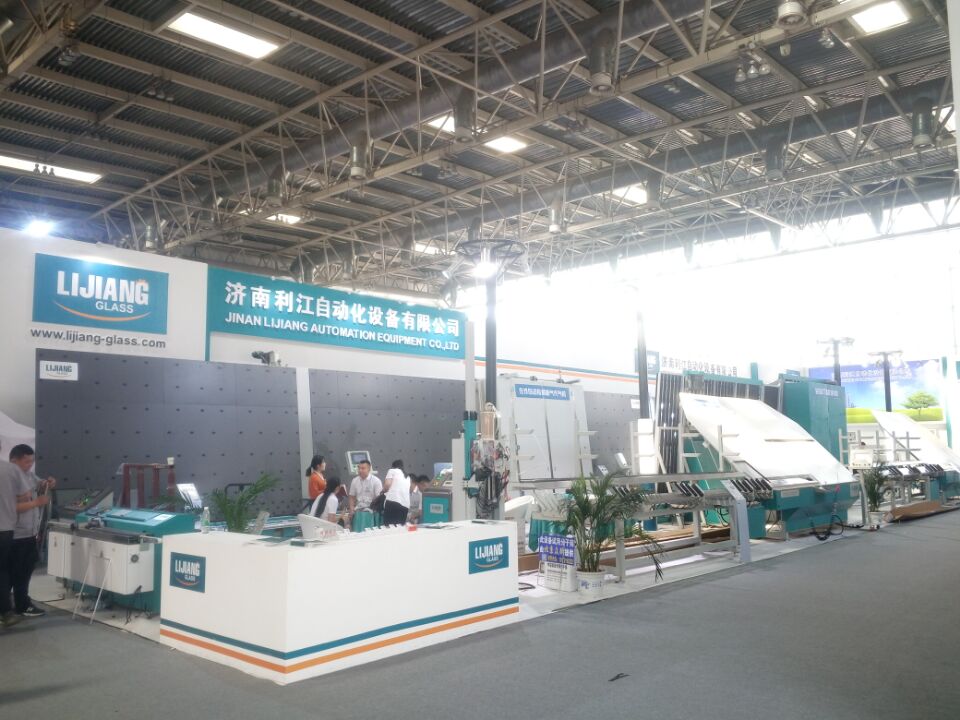

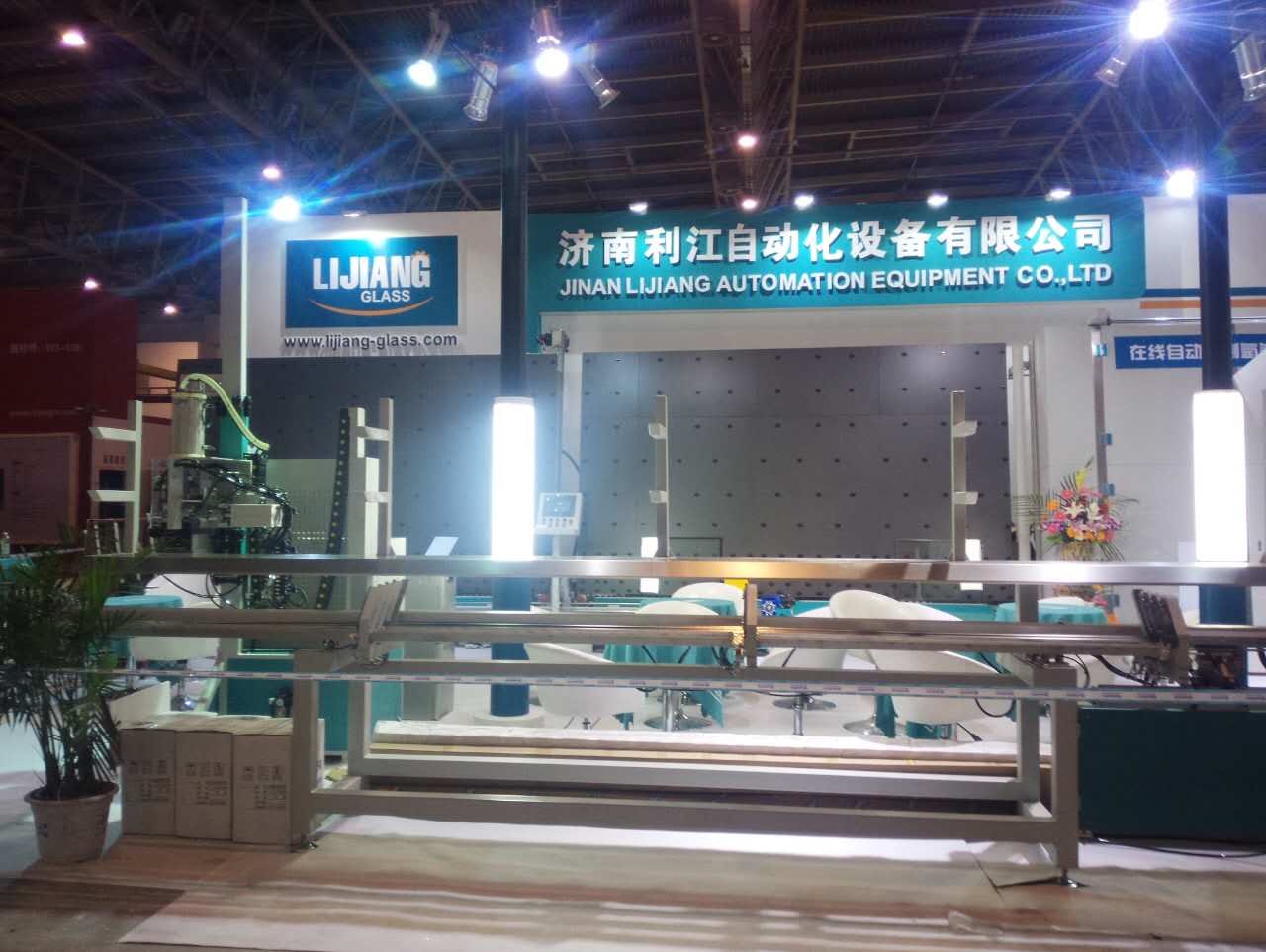

National Expo

Certifications

Technician Team:

Technician Team:
We have our own technician team ,IG line and automatic sealing robot technician team have 6 experts which all have more than 15 glass machine working experience. Aluminum spacer bending and desiccant filling machine team we have 3 technician which have rich experience in double glass machines. Butyl extruder machine and sealing pump and hot melt machine team have 4 experienced technician, all of them are worked in glass machine filed more than 12 years,

Our service

Why Choose Us

About Us

Company Profile

JINAN LIJIANG QUTOMATIC EQUIPMENT CO.LTD is an enterprise which integrated DGU Machines development, designing, sale and service into a whole. We are striving to create the top-grade DGU Machines through setting up technology research and development center, inviting some experts to guide. Our DGU machines are used by the main domestic famous glass factories, such as NORTH GLASS, XIN FU XING GLASS,YAO HUA GLASS, DALIAN HUAYING GLASS etc. We also have more than 400 customers who use our DGU machines in China. We have got CE certification in 2017. So far our machines has exported to more than 30 countries and regions, just like Europe, South America, Middle East, Southeast Asia and so on.
