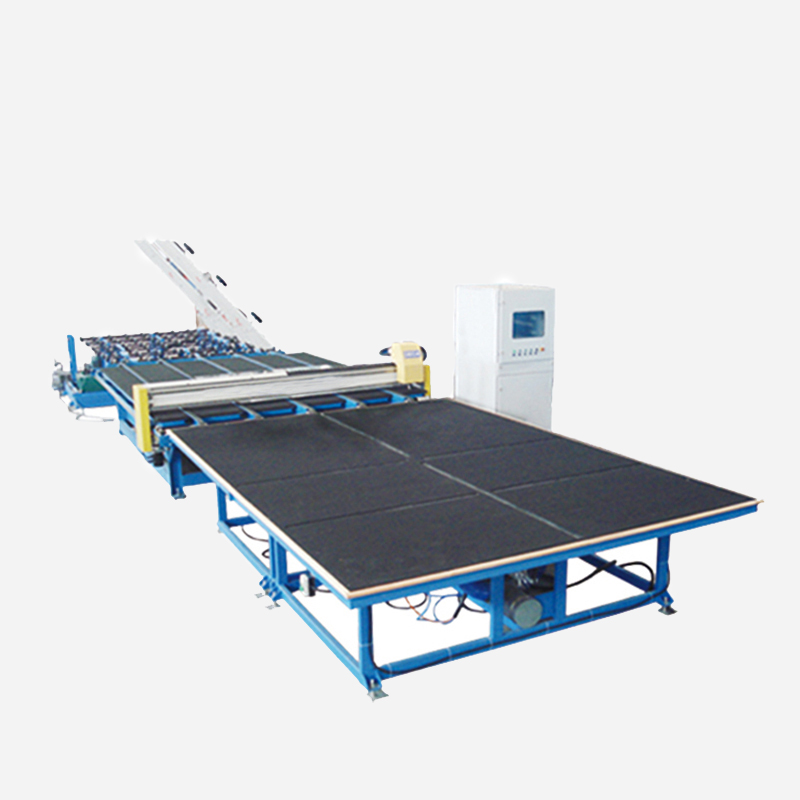

Automatic CNC Glass Cutting Machine

A cnc cutting machine’s most apparent feature is that it cuts thru direct bodily contact. but, in contrast to infinite other slicing gear at your disposal, a cnc machine is computerized and follows a fixed programmed path via laptop numerical control.

Price

$9.99

Contact Now

Product Details

A cnc slicing system’s maximum obvious characteristic is that it cuts via direct physical contact. but, in assessment to limitless different reducing equipment at your disposal, a cnc system is automated and follows a hard and fast programmed course through computer numerical control.

technical parameter

cutting precision	≤±0.30mm
max.cutting size	3660×2750mm
min.cutting size	100×100mm
glass thickness	3~19mm
cutting speed	max100m/min
working table height	930±25mm
cutting table height	4710×3250×930mm
cutting table dimension	1500kg
loading table transport speed	40m/min
loading table tilting speed	7m/min
loading table forward distance	1000mm
loading table max.absorb size	3660×2750mm
loading table min.absorb size	1800×1800mm
loading table dimension (odd station)	6000×3900×930mm
max. thickness of glass packing	800mm
min.glass nog height	240mm
breaking table dimension	4200×3000×930mm
air cushion motor power	5.5kw
air pressure	0.5--0.8Mpa
power supply	AC380V 50Hz
total power	18.5KW
